How to Test RF Remote Range with Your Receiver

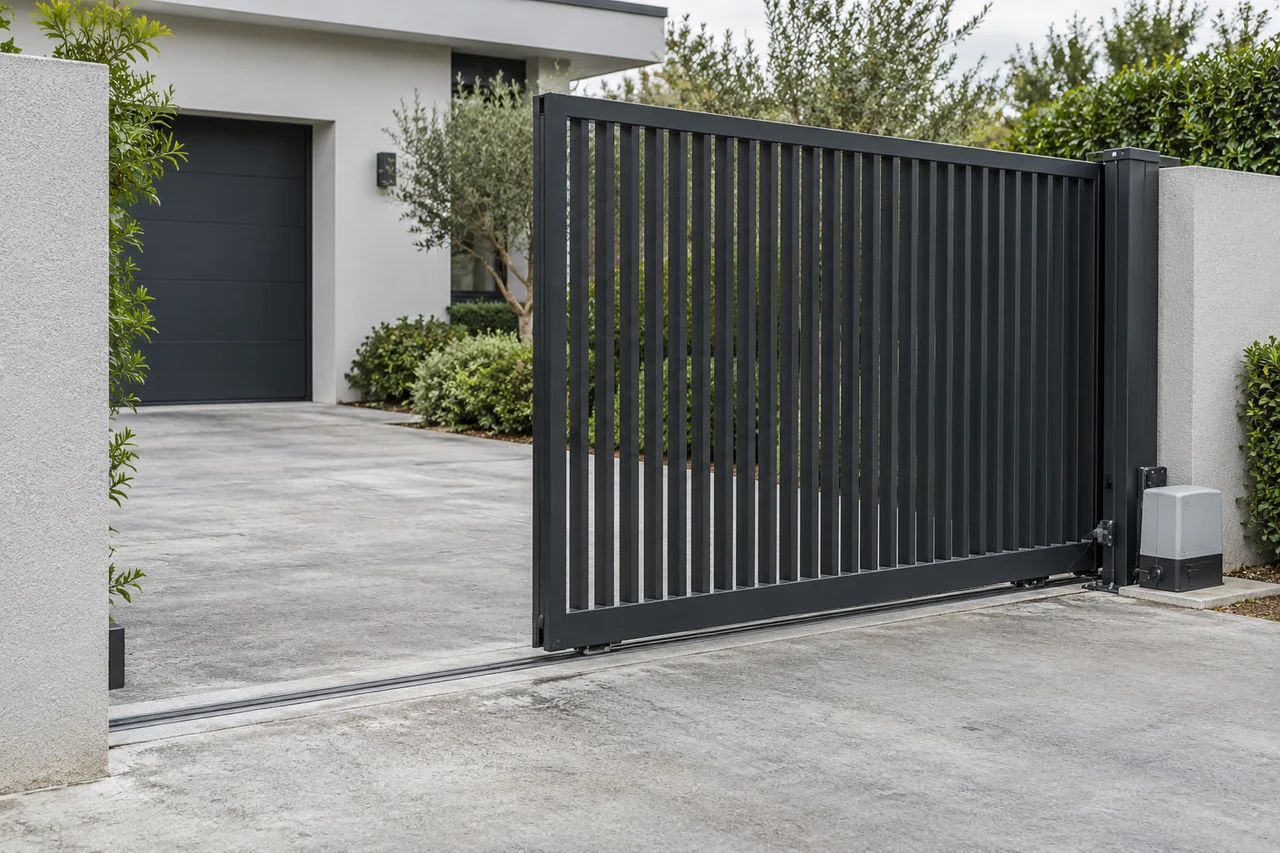

A remote that works across an open car park may miss commands from inside a vehicle at the gate. Before ordering, define where the user must be able to operate it and which receiver will be installed.

A stated range applies to a particular transmitter, receiver, antennas and test environment. Without those details, two distance ratings cannot be compared fairly.

Received power and decoding margin change with the path. Metal, obstructions, reflections and local interference can make a short path harder than a longer unobstructed one.

This article provides a test method, not measured range data for a product. The useful result is a record of command success at the locations your installation needs.

Make the Range Claim Testable

Ask for the receiver model, antenna arrangement, transmitter battery, test location and success criterion behind the stated distance. Check whether the result was measured with the production enclosure.

Do not assume a rating means clear line of sight unless the supplier says so. An open-field result and a result through a garage door describe different paths.

Choose required operating points before testing: for example, the normal approach, the parking position and the place where a user stands to exit. Measure those distances and keep the hardware position fixed.

Distinguish attenuation from interference. A wall or body can reduce the desired signal; a noisy supply or another radio may impair reception by adding noise or overloading the receiver.

• Open path: note distance, antenna height, orientation and whether vehicles or people enter the path.
• Obstructed path: note the wall, floor or door crossed and its open/closed state.
• Normal use: hold the remote as intended, including inside the vehicle if that is a requirement.
• Repeated commands: count attempts, successful responses and response time at each location.

Also record hardware revisions, battery type and measured transmit supply voltage, receiver supply, date and equipment operating nearby. Keep a raw attempt count; a rounded success percentage hides the sample size.

What Changes the Link Margin

A link budget accounts for transmit power, antenna gains and losses, path loss and the receive threshold. A site test adds what the simplified budget cannot describe reliably: reflections, obstructions and changing interference.

For equal isotropic antenna gains and transmitted power, free-space loss is lower at a lower frequency. That model does not establish which finished remote works better through a building: antenna efficiency, permitted emissions and the path can outweigh the frequency difference.

Compare modulation together with data rate, occupied bandwidth and receiver settings. FSK, OOK and spread-spectrum links make different tradeoffs; a modulation label alone does not rank their installed range.

In the ITU free-space model, another 6 dB of link budget permits about twice the distance when other terms are fixed. Real ground-level installations have reflections and obstructions, so this is a model, not an upgrade promise.

Antenna placement changes both radiation and reception. A wire monopole needs an appropriate ground reference; a compact or helical antenna can be valid when designed and matched for the enclosure.

A lower sensitivity threshold helps only under comparable test conditions. A -110 dBm specification at a slow data rate is not directly comparable with -95 dBm at a faster rate or a different error target.

There is no reliable wall-loss number to use for every site. Material, thickness, moisture, reinforcing metal, path angle and openings all affect the result.

Interference can corrupt frames or desensitize the receiver. A strong signal outside the receive channel can also cause trouble if the receiver lacks sufficient blocking performance.

Four Checks Before Changing Hardware

Change one variable at a time and repeat the same command sequence. Start with the two easiest substitutions: a known-good remote and the correct fresh battery.

• Battery: use the specified chemistry and size, inspect contacts, and measure voltage during transmission. An LED is not an RF output test.
• Antenna: follow the receiver’s installation instructions. Move a permitted external antenna clear of metal; do not reshape a tuned antenna by guesswork.
• Interference: with permission to operate the equipment, switch suspect supplies or lighting off one at a time and repeat the same test. A 2.4 GHz router is not automatically a 433 MHz interferer.
• RF check: use a calibrated spectrum analyzer or suitable receiver to compare spectrum occupancy and transmitter output. An uncalibrated scan does not establish receiver sensitivity or prove compliance.

A repeatable improvement after one change gives a direction for diagnosis. Restore and repeat the original condition where practical to check that the improvement was caused by that change.

Choose a Remedy for the Measured Cause

If one receiver location fails while another works with the same remote, investigate placement, supply and local interference. If one remote fails with several receivers, investigate that transmitter first.

• Antenna placement: use a supported external antenna and account for feedline loss; test the final mounting position.
• Receiver: compare sensitivity, selectivity and blocking under the intended waveform rather than choosing by architecture name alone.
• New radio design: evaluate data rate, packet format and modulation together. Replacing ASK with FSK generally requires compatible hardware and firmware at both ends.
• Coverage: a documented repeater can relay a compatible protocol, but adds another radio path, latency and installation dependency.
• Power or frequency changes: check the target market’s rules and the product’s authorization before modifying hardware; neither is a universal field fix.

What Buyers Should Ask For

A useful supplier response should identify the tested system and limits. Ask for evidence that matches the variant, receiver and antenna you intend to buy.

• Range: the test method, attempt count, success criterion and receiver/antenna used.
• Receiver: sensitivity conditions plus adjacent-channel and blocking behavior where available.
• Transmitter: measured output and whether it is conducted power, ERP, EIRP or field strength. These are different quantities.
• Antenna: permitted configurations, cable loss and installation restrictions.
• Compatibility: supported modulation, protocol, registration method and hardware revisions.
• Market evidence: the applicable radio test report or authorization for the actual product variant and destination.

Questions That Affect the Test

Why can range get worse after a battery change? Check battery type, contact pressure and voltage under transmit load. A new cell can still be unsuitable, poorly connected or depleted; resting voltage alone does not resolve this.

How should an antenna work with a metal cabinet? Use the manufacturer’s supported external antenna arrangement. Cabinet openings and cables can affect radiation, but an opening of unknown size is not a predictable substitute for testing.

Will pressing two remotes together fill a dead zone? No. Overlapping transmissions on the same channel may corrupt commands. Test each remote separately and address the path or receiver placement.

Is 433 MHz better than 2.4 GHz? With equal isotropic gains the lower frequency has less free-space loss. Finished-system range still depends on antennas, power limits, sensitivity, bandwidth and the installed path. Bidirectional capability is a protocol/hardware choice, not a property of 2.4 GHz.

How many presses are enough? Agree a count and required success rate before testing, then report both. For example, 19 successes in 20 attempts is 95% in that short run; it does not establish a long-term 95% reliability guarantee.

Keep the Test Record with the Purchase Decision

Select the system that meets the required locations with reserve, then repeat the checks under meaningful variations such as enclosure position, battery condition and operating equipment.

If two samples differ, keep the receiver, path and procedure constant while substituting one sample at a time. That turns a range complaint into evidence a supplier or installer can act on.
